Query Console
Ask questions about your infrastructure in plain English. The Query Console connects to your Oxid PostgreSQL backend and lets you explore resources, dependencies, costs, vulnerabilities, and project relationships without writing any code.
How It Works
Type a question in plain English. The Query Console translates it into a database query, runs it against your Oxid state backend, and returns the results.
Example questions:
- "Show me all EC2 instances across my projects"
- "Which resources cost the most per month?"
- "What depends on my networking project?"
- "Show resources with critical vulnerabilities"
- "How many resources does each project manage?"
- "List all S3 buckets without encryption"
No SQL knowledge required. Just describe what you want to know.
What You Can Explore
Resources and State
Browse all managed resources, their attributes, current state, and metadata across every project.
Dependencies
See cross-resource and cross-project dependencies, module references, and terraform_remote_state links.
Cost Breakdown
View cost estimates per resource, per project, or per cloud provider with cost overlays on results.
Vulnerabilities
Surface Checkov findings and security issues alongside the resources they affect.
Project Connections
See which projects share state, reference outputs from other projects, or deploy to the same accounts.
Resource Attributes
Drill into any resource attribute like tags, regions, instance types, storage sizes, and configurations.

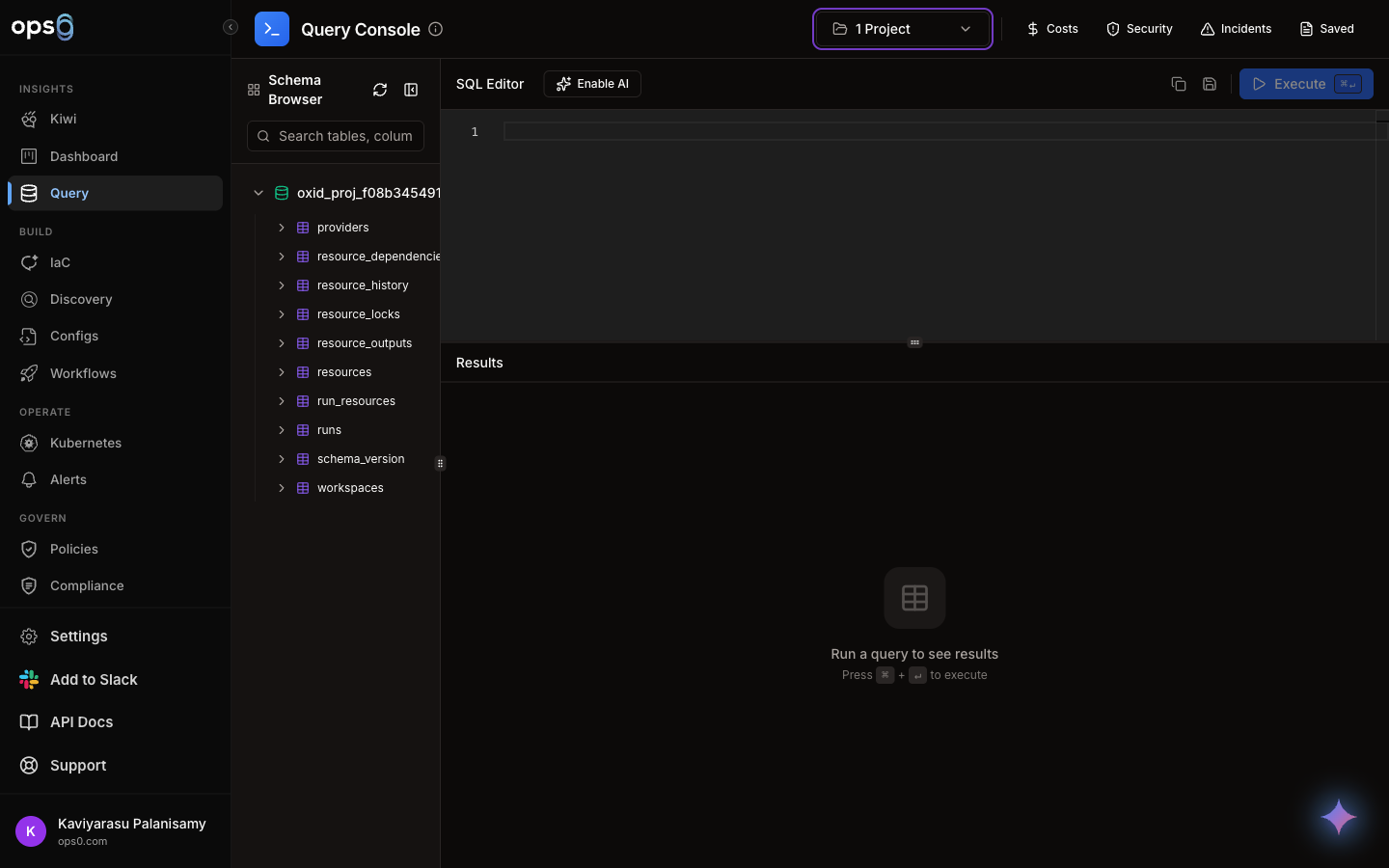

Query Interface
| Component | Description |
|---|---|
| Natural Language Input | Type a question in plain English to explore your infrastructure |
| Project Selector | Scope queries to one or more Oxid-enabled projects |
| Schema Browser | Browse available tables, columns, and data types |
| Cost Overlay | Toggle cost data alongside query results |
| Vulnerability Overlay | Toggle vulnerability findings alongside query results |
| Results Table | Sortable, filterable results with pagination |
Working with Results
| Feature | Description |
|---|---|
| Column Sorting | Click column headers to sort ascending or descending |
| Column Visibility | Toggle which columns are shown |
| Filtering | Apply additional filters to narrow result rows |
| Pagination | Navigate through large result sets |
| Row Selection | Select rows for bulk operations |
| Cost Column | See estimated monthly cost per resource when cost overlay is enabled |
| Vulnerability Column | See severity and check details when vulnerability overlay is enabled |
Saving and Sharing Queries
Save any query for quick access, share it with your team, or mark it as a favorite.
Run Your Query
Type a question and get results.
Click Save
Click the Save button in the toolbar.
Name Your Query
Give it a descriptive name and optional description.
Choose Visibility
Select whether the query is private or shared with your organization.
| Field | Description |
|---|---|
| Name | Display name for the saved query |
| Description | Optional description of what the query does |
| Projects | Which projects the query targets |
| Favorite | Mark as favorite for quick access in the sidebar |
| Usage Count | How many times the query has been run |
| Last Used | When the query was last executed |
Exporting Results
| Format | Use Case |
|---|---|
| CSV | Spreadsheet analysis, reporting, sharing with stakeholders |
| JSON | Integration with other tools, scripting, automation |
Click the Export button in the results toolbar to download the current result set.
Sidebar Navigation
| Section | Description |
|---|---|
| Recent Queries | Your most recently executed queries |
| Favorites | Queries you have marked as favorites |
| Shared Queries | Queries shared by your team |
| Projects | Browse queries grouped by project |
Requirements
The Query Console requires Oxid to be enabled on at least one project. Oxid stores your IaC state in a PostgreSQL database, which is what the Query Console reads from.
Only projects using Oxid as their state backend appear in the Query Console. See IaC Projects to enable Oxid on a project.
